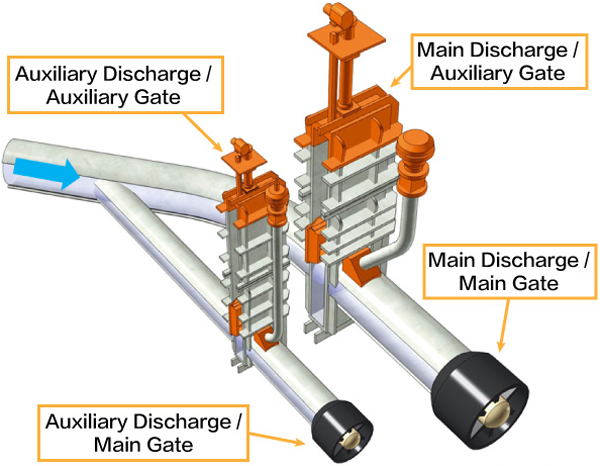

Ishigoya Dam discharge facilities for water utilization
Auxiliary Discharge / Auxiliary Gate Type High-pressure slide gate Dimensions Net span 0.55 × Door height 0.7m Quantity 1 gate Design wet depth 31.58m Door body weight 1t/gate Water sealing method Rear metal sealing Opening/closing machine Hydraulic cylinder type Opening/closing speed 0.3m/min Head 0.75m Opening/closing load When opening: 1.5tf
When closing: 4.6tfMain Discharge / Auxiliary Gate Type Ring follower gate Dimensions Diameter 1.9m Quantity 1 gate Design wet depth 31.58m Door body weight 5.5t/gate Water sealing method Rear metal sealing Opening/closing machine Hydraulic cylinder type Opening/closing speed 0.3m/min Head 2.05m Opening/closing load When opening: 6.2tf
When closing: 26.8tfAuxiliary Discharge / Main Gate Type Hollow jet valve Dimensions Diameter 0.7m Quantity 1 gate Design wet depth 31.58m Door body weight 1.1t (sliding part) Water sealing method Metal sealing Opening/closing machine Hydraulic cylinder type Opening/closing speed 0.1m/min Head 0.28m Opening/closing load When opening: 9.4tf
When closing: 27.7tfMain Discharge / Main Gate Type Hollow jet valve Dimensions Diameter 1.9m Quantity 1 gate Design wet depth 31.58m Door body weight 10.4t (sliding part) Water sealing method Metal sealing Opening/closing machine Hydraulic cylinder type Opening/closing speed 0.1m/min Head 0.72m Opening/closing load When opening: 23.4tf
When closing: 145.4tf
