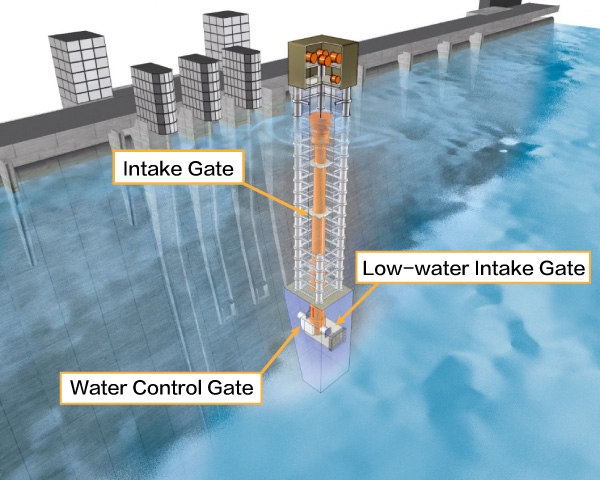

Selective intake facility
Intake Gate Type Circular multi-stage cylinder gate Dimensions Diameter 3.8m ~ 5.0m Design wet depth 93.3m Door body weight 590t/gate Water sealing method Sliding part entire-circumference rubber sealing Opening/closing machine Wire rope winch type Opening/closing speed 0.3m/min Head 68m Opening/closing load When opening: 530tf
When closing: 597tfLow-water Intake Gate Type High-pressure slide gate Dimensions Net span 3.0 × Door height 3.0m Quantity 1 gate Design wet depth 98.8m Door body weight 20t/gate Water sealing method Rear 4-directional rubber sealing Opening/closing machine Wire rope winch type Opening/closing speed 0.3m/min Head 106m Opening/closing load When opening: 23tf Water Control Gate Type High-pressure slide gate Dimensions Net span 3.0 × Door height 3.0m Quantity 1 gate Design wet depth 98.8m Door body weight 25t/gate Water sealing method Rear 4-directional rubber sealing Opening/closing machine Wire rope winch type Opening/closing speed 0.3m/min Head 106m Opening/closing load When opening: 28tf
