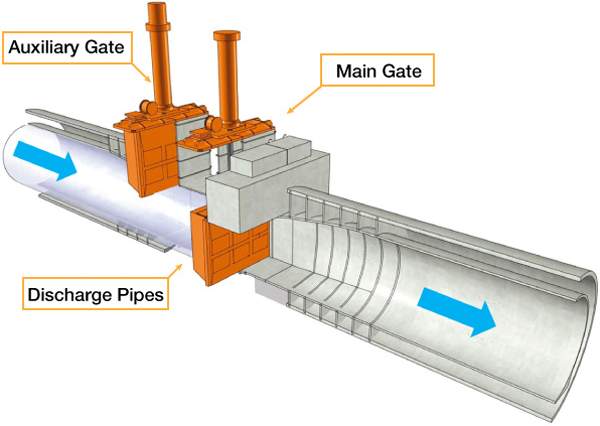

High-level spillway for normal use
Auxiliary Gate Type High-pressure slide gate Dimensions Net span 2.0 × Door height 2.21m Quantity 2 gates Design wet depth 56.2m Door body weight 8.5t/gate Water sealing method Rear 4-directional metal sealing Opening/closing machine Hydraulic cylinder type Opening/closing speed 0.3m/min Head 2.5m Opening/closing load When opening: 180tf
When closing: 130tfMain Gate Type High-pressure slide gate Dimensions Net span 2.0 × Door height 2.0m Quantity 2 gates Design wet depth 56.2m Door body weight 8.5t/gate Water sealing method Rear 4-directional metal sealing Opening/closing machine Hydraulic cylinder type Opening/closing speed 0.3m/min Head 2.5m Opening/closing load When opening: 180tf
When closing: 130tfDischarge Pipes Sectional dimensions Φ2.4 ~ □2.0 ~ 3.0m Length 68.5m/pipe Quantity 2 pipes Weight 110t/pipe
